DURMA HD-FO FIBER LASER

DURMA HD-FO FIBER LASER specifically designed that care about floor space. HD-FO Fiber Lasers make differences with speed, high quality components, efficiency and industrial design. Loading and Unloading requires less  effort in situations where shuttle table is not necessary.





    • Specifically designed that care about floor space
    • User Friendly
    • Low Operating Costs
    • Fast Movable Upper Cover
    • Easy Access To Cutting Area
    • Compact Bridge Design
    • Easy Transport

    Fiber lasers outshine with its fast cutting and energy efficiency abilities when especially its compared to CO   lasers. Easy use, maintenance and service has been achieved by the high technology of Fiber Lasers. Globally recognized efficient components used in DURMA Fiber Lasers add value to your company. Rack & Pinion and Linear Motor Motion tecnologies allows us achieve 3G accelaration. We always strive to serve quality, performance and efficiency to our clients. DURMA Fiber Laser is unrivaled with its rigid body structure, perfect filtration system, compact design, efficiency and user friendliness.

    HD-FO TECHNICAL SPECIFICATIONS
    Max sheet size3.048 x 1.524 mm
    Max. sheet weight200 kg/m²
    Z axis stroke125 mm
    Max. Synchronous speed (X-Y)141 m/dk.
    Max. Acceleration (X-Y)14 m/s²
    Positional  Accuracy±0.05 mm
    Repeatability±0.05 mm
    MACHINE SIZES
    Machine size5308mm x 2810mm h= 1860mm 6582mm (with filter unit)
    CUTTING THICKNESS
    Power1kW2kW
    Mild Steel (mm)812
    Stainless Steel  (mm)46
    Aluminum (AIMg3) (mm)46
    Brass (mm)46
    Copper (mm)23

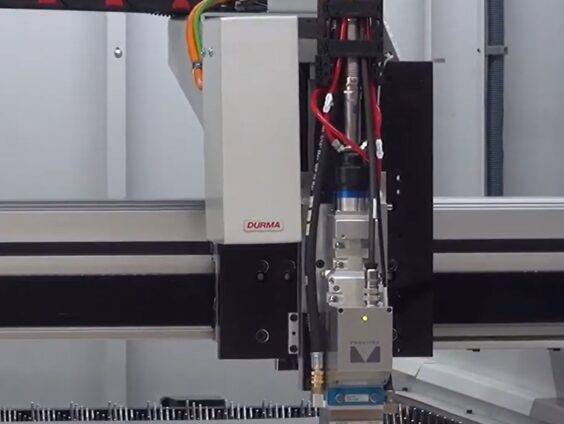

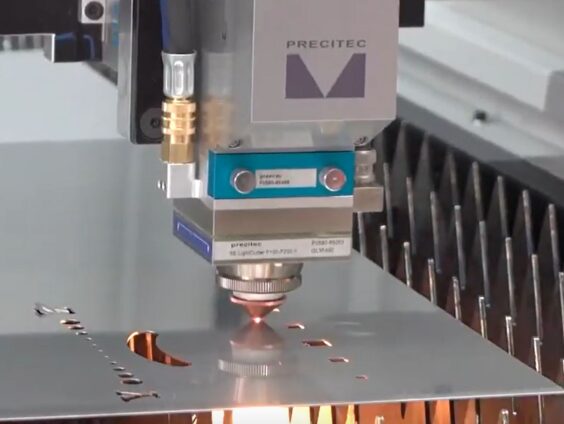

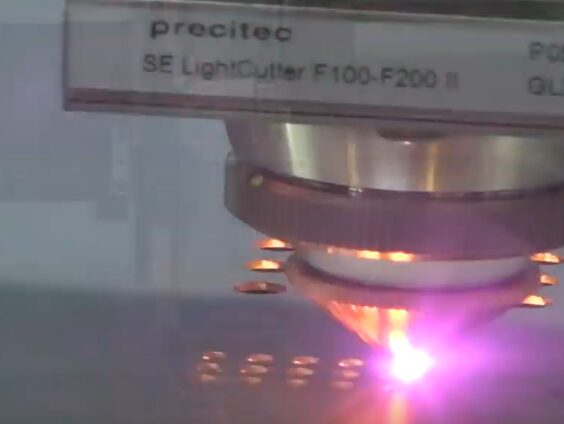

    CUTTING HEAD
    Focus Distance125 mm
    FocusAutomatic /Manual
    CONTROL UNIT
    CNCSIEMENS SINUMERIK 840D SL
    Screen19″ Touch panel
