KOVOSVIT MCV 1000 CNC Vertical machining center
X / Y / Z – 1 016/610/720 mm
Table clamping surface: 1 300 x 670 mm
Max. weight on table: 1 200 Kg
Max. speed: 8 000/12 000/18 000/24 000 min-1
Highly efficient machining is guaranteed by the use of highspeed spindles and high rapid traverses.
Easy approach to the working space thanks to sliding covers which completely open one corner of the working space.

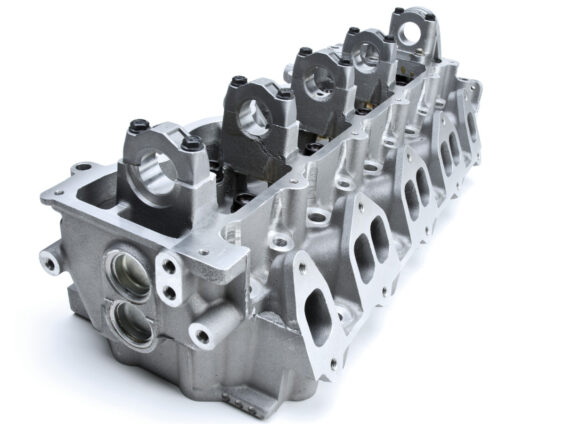

Excellent rigidity of the supporting frame allows both heavy duty machining and very precise machining of complicated workpieces.

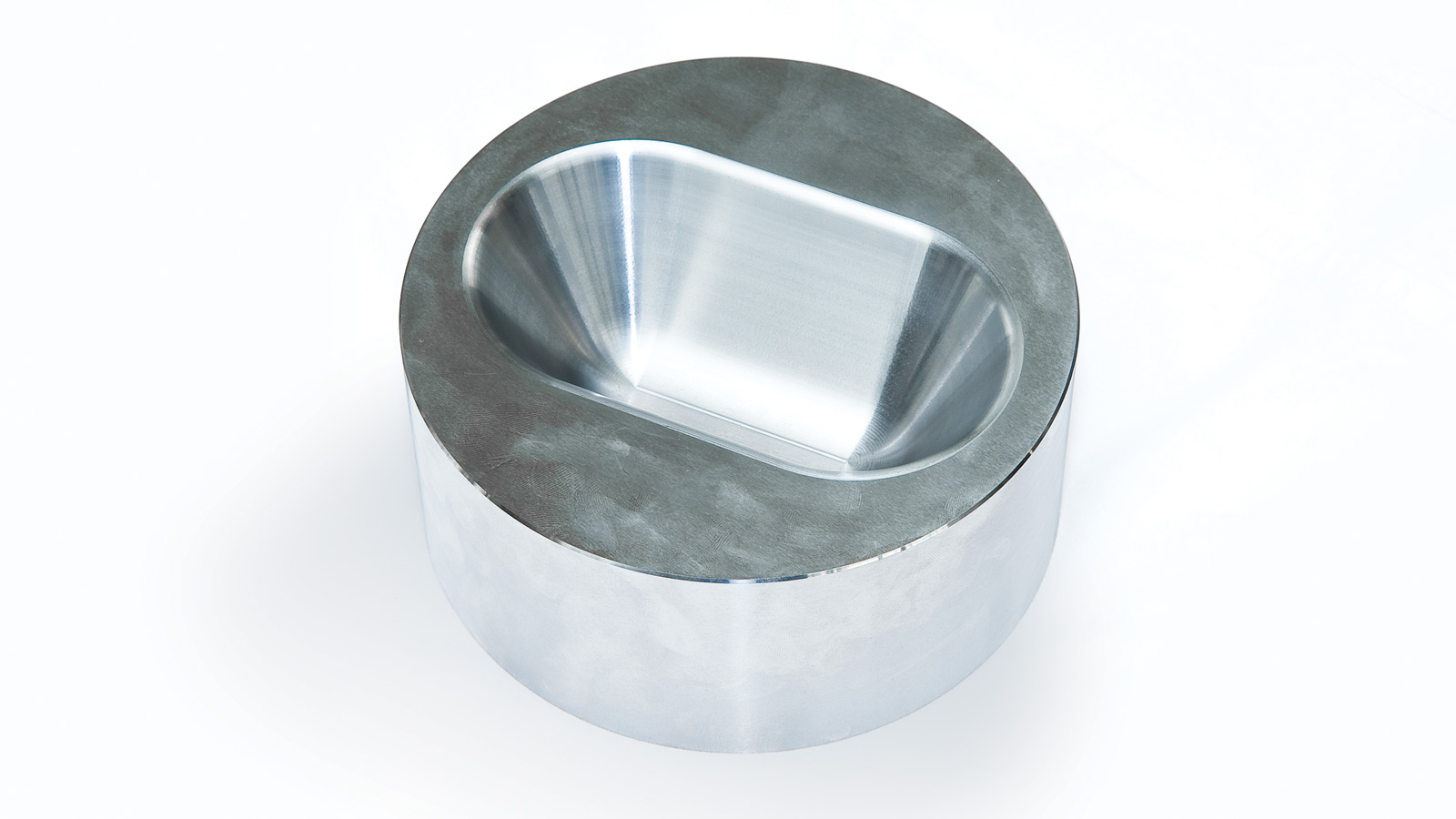

High dynamics of linear axes allows high-speed machining of molds.
The MCV series machining centers are built on a C-shaped supporting frame. Both composition and shapes of the machine supporting frame castings are optimized with regard to the requirements for high rigidity and stability. Use of linear guideways in all linear axes guarantees the required accuracy and dynamics during the machining process.
Electrical equipment 3 × 400V/50Hz
Digital alternating spindle and linear axis control drives HEIDENHAIN / SIEMENS
Direct measuring system
Cooling aggregate for external cooling
Automatic lubrication of moving parts
Central tool clamping
Spindle circulation cooling
Hand wheel
ETHERNET
Operator tool kit
Accompanying documentation
Tool magazine with mechanical arm
Chip conveyor
Two-speed gearbox (version POWER)
Temperature compensation
Control system HEIDENHAIN iTNC530 HSCI / SIEMENS SINUMERIK 840D sl
20 bar internal coolant supply Type AD
3D infra probes – HEIDENHAIN / RENISHAW / M&H HEXAGON METROLOGY
Tool probes – HEIDENHAIN / RENISHAW / M&H HEXAGON METROLOGY
Machine status signalling (beacon)
LOSMA cooling fluid belt filter
Manual rinsing of workspace
Rotary and tilting tables (4th and 5th axis) – HOFMANN / KITAGAWA
External tool air blast
Oil mist collector Filtermist FX
Remote diagnostics
MAS machine monitor
MAS GSM monitor
Switchboard air-conditioning
DXF import (Heidenhain)
AFC adaptive feed control (Heidenhain)
| TECHNICAL DATA | MCV 1000 POWER | MCV 1000 SPPED | MCV 1000 SPRINT | MCV 1000 RAPID | |
| Table | |||||
| Table clamping surface | mm | 1300 x 670 | 1300 x 670 | 1300 x 670 | 1300 x 670 |
| T-slots (number×width×spacing) | mm | 5 x 18 x 125 | 5 x 18 x 125 | 5 x 18 x 125 | 5 x 18 x 125 |
| Max. weight on table | kg | 12 000 | 12 000 | 12 000 | 12 000 |
| Working range | |||||
| X-axis | mm | 1016 | 1016 | 1016 | 1016 |
| Y-axis | mm | 610 | 610 | 610 | 610 |
| Z-axis | mm | 720 | 720 | 720 | 720 |
| Distance from spindle nose to table clamping surface | mm | 120 – 840 | 150 – 870 | 150 – 870 | 150 – 870 |
| Spindle | |||||
| Spindle taper | ISO 50 | ISO 40 / HSK A63 | HSK A63 | HSK A63 | |
| Max. speed | min-1 | 8000 | 12 000 | 18 000 | 24 000 |
| Speed change | 2 rates | infinitely variable | infinitely variable | infinitely variable | |
| Feed rate | |||||
| Working feed rate X, Y, Z | mm.min-1 | 1 – 40 000 | 1 – 40 000 | 1 – 40 000 | 1 – 40 000 |
| Rapid traverse X, Y, Z | m.min-1 | 40 | 40 | 40 | 40 |
| Tool magazine | |||||
| Magazine capacity | 24 [40] | 30 [60] | 30 [60] | 30 [60] | |
| Max. tool length | mm | 400 | 350 | 350 | 350 |
| Max. tool dia. | mm | 125 | 80 [70] | 80 [70] | 80 [70] |
| Max. tool dia. – adjacent stations empty | mm | 175 [160] | 125 [130] | 125 [130] | 125 [130] |
| Change time of adjacent tool | s | 5 | 4 | 4 | 4 |
| Max. tool weight | kg | 15 | 6,5 | 6,5 | 6,5 |
| Motor | |||||
| Spindle motor output – SIEMENS (S1/S6 – 40%) | kw | 28 / 43 | 32 / 48 | 25 / 35 | 19 / 26,7 |
| Nominal torque SIEMENS (S1/S6 – 40%) | Nm | 406 / 623 | 130 / 200 | 86 / 120 | 60 / 86 |
| Max. total machine input | kVa | 55 | 55 | 55 | 55 |
| Accuracy ČSN ISO 230 – 2 | |||||
| Measuring system X, Y, Z | direct | direct | direct | direct | |
| Positioning accuracy of coordinates | mm | 0,01 | 0,01 | 0,01 | 0,01 |
| Accuracy of repeatability | mm | 0,004 | 0,004 | 0,004 | 0,004 |
| Air operating pressure | MPa | 0,55 – 0,6 | 0,55 – 0,6 | 0,55 – 0,6 | 0,55 – 0,6 |
| Machine dimensions (l x w x h) | mm | 4600 x 3600 x 3330 | 4600 x 3600 x 3330 | 4600 x 3600 x 3330 | 4600 x 3600 x 3330 |
| Machine weight | kg | 11 500 | 11 500 | 11 500 | 11 500 |
