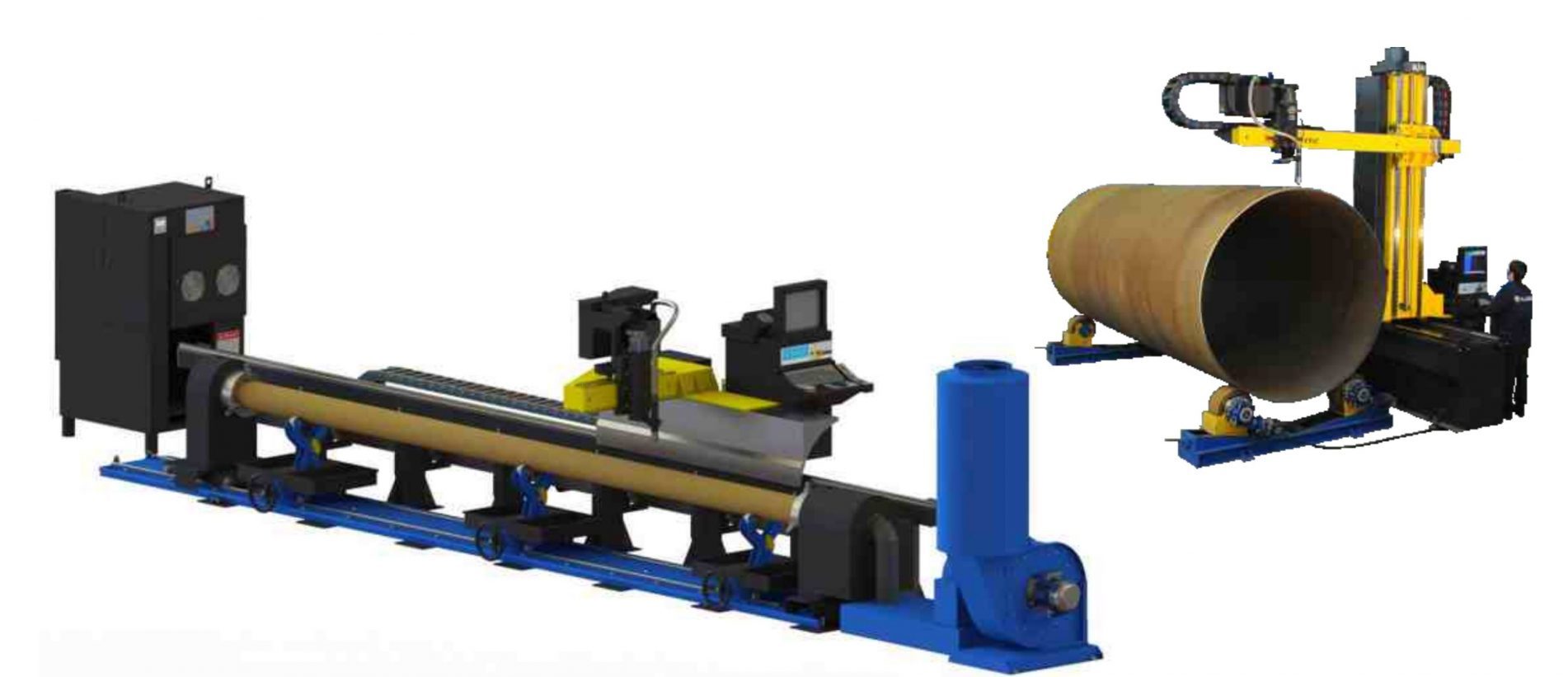

AJAN PIPE CNC PLASMA CUTTING MACHINES

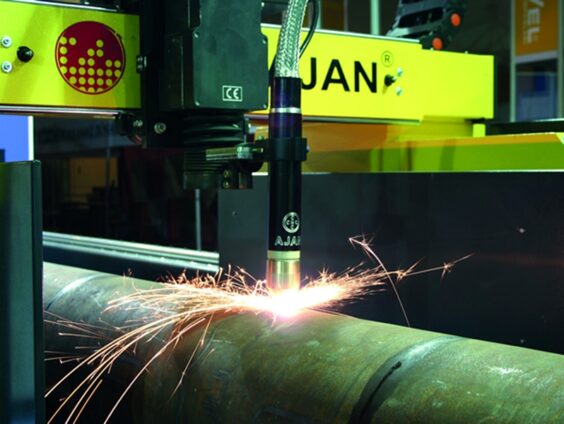

AJAN BKM CNC SERIES has been designed for satisfying the requirements of the user’s to be able to cut pipes and sheet metal with CNC plasma cutting system. First of all, the most important differences from the similar machines are that the conventional plasma cutting generator hasn’t been used and it has been equipped with Precision Plasma series 130 Ampere or 260 Ampere precise cutting plasma generator, torch and the required gas selections can be made automatically. For that reason, it can cut steel, chrome and aluminium pipes with high accurancy.
All inclusive control panel (Dryer, ventilation, generator, jet filter)
Free AJAN CAD program and Geometric Shapes Library.
Automatically cutting resume at break point after electricity shut down.
Working with standard ESSI, ISO, G codes. DXF files.
Leaves kerf width on the program to the cutting process.
Free software updates from the internet.
Automatically defining the sheet metal angle.
The CNC Unit is made completly in AJAN Company so the client can get all his service
needs, solutions and spare parts directly from AJAN.
| Machine Model | BKM 6300 | BKM 6600 | BKM 12300 | BKM 12600 | BKM 6300-600 | BKM 12300-600 |
| Pipe Legth (X Axis) | 6000 | 6000 | 12000 | 12000 | 6000 | 12000 |
| Pipe Minimum Diameter | Ø 50mm | Ø 300mm | Ø 50mm | Ø 300mm | Ø 50mm | Ø 50mm |
| Pipe Maximum Diameter | Ø 300mm | Ø 600mm | Ø 300mm | Ø 600mm | Ø 600mm | Ø 600mm |
| Maximum Pipe Thickness | ||||||
| For 130 Ampere Generator | 25mm | 25mm | 25mm | 25mm | 25mm | 25mm |
| For 260 Ampere Generator | 40mm | 40mm | 40mm | 40mm | 40mm | 40mm |
| BKM 2500 | |
| Pipe Length (X Axis) | 6000 mm |
| Pipe Minimum Diameter | Ø 1000 mm |
| Pipe Maximum Diameter | Ø 2500 mm |
| Maximum Pipe Thickness | |
| For 130 Ampere Generator | 25 mm |
| For 260 Ampere Generator | 40 mm |

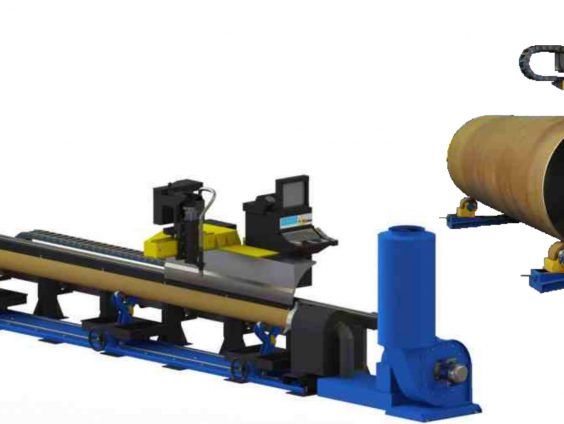

Click the picture to see PIPE CUTTING CNC PLASMA MACHINE LAYOUT
P3 1.2 GHz Cpu
Motherboard with P3 support
32 MB VGA Card
10/100 Mbps Ethernet Card
USB support
128 MB Ram PC133 MHz
10 GB HDD
17” LCD Monitor
PS/2 mouse
Data transfer
Local area network
USB Flash Disc
AJAN JET FILTER SYSTEM
Ajan Jet Filter System are specially designed for heavy industry conditions. As a result of long lasting research and development work; with less air consumption and automatic filter cleaning property, the operation costs are reduced to minimum.
