Gantry machining centers MMC 1500

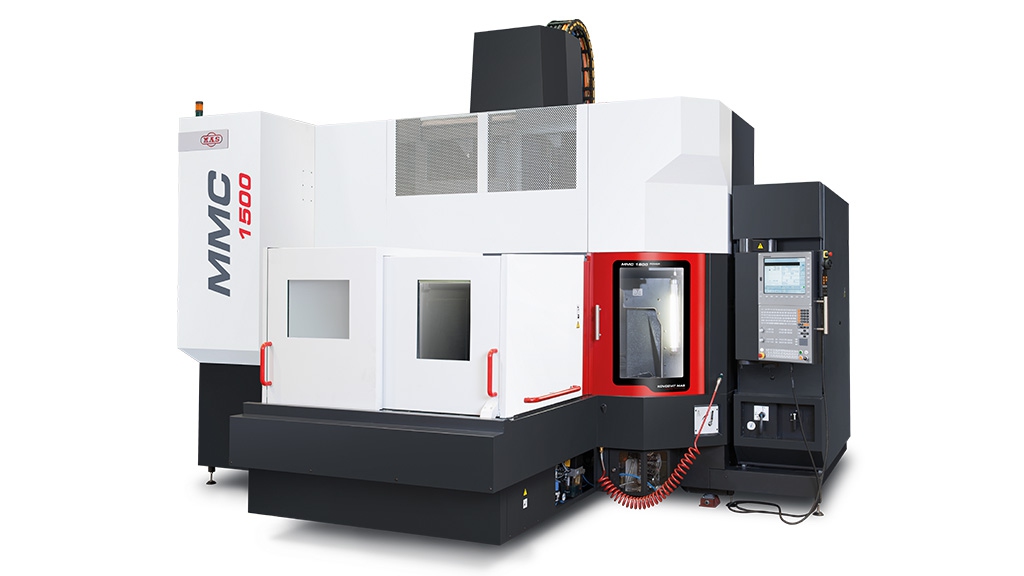

Gantry machining centers KOVOSVIT MMC 1500

X / Y / Z – 1 500/1 300/600 mm

Table clamping surface: 1 500 x 1 300 mm

Max. weight on table: 2 500 Kg

Max. speed: 8 000/10 000/12 000/18 000 min-1



  • Machine MC1500 is designed for precise and fast machining of general shaped areas, drilling, boring, reaming, cutting threads and milling large and complicated shaped workpieces.
  • Machine variants: Single table and dual table „DT”
  • Spindle variants: POWER PLUS, POWER, SPRINT, SPEED
  • High machine accuracy and dynamics in axes X, Y, Z (rapid traverse up to 45,000 mm/min and acceleration 5 m/s-2).
  • The working space of the machine is 1 500 × 1 000, or in the case of the “DT“ (Dual Table) variant the work table is divided into two separate tables 720 × 1 000. Both working spaces are fully covered and separated.
  • The movable parts of the machine (table, cross beam, ram) are placed on linear guideways
  • Measurement of the position by the linear optical sensors (scales)
  • Control system HEIDENHAIN / SIEMENS





    The X-, Y-, Z-axis linear and roller guides ensure consistently high machining accuracy
    — Direct measurement – quick and precise positioning
    — Application of high-performance tools with high-pressure internal coolant supply
    — Quick tool change – automatic tool changer with mechanical arm up to 30 [24] tools in standard
    — Wide machining range with minimum build-up area of the machine
    — Efficient chip removal
    — Water-tight cabin covers of the work area with left-hand side glass door
    — Wide choice of special accessories
    — Spindle output S1 up to 39 kW
    — Spindle speed S1 up to 18 000 min-1
    — Digital AC drives of the spindle and axes
    — HEIDENHAIN iTNC 530 HSCI (SINUMERIK 840D sl) control system

    Internal coolant supply 2 MPa – Type AD
    Internal coolant supply 6 MPa – Type AD
    Adapter for centric clamping of tools DIN 69872-A ISO 40 type A
    Adapter for centric clamping of tools DIN 69872-A ISO 50 type A
    3D probe OMP 60 RENISHAW
    Tool probe TS27R RENISHAW
    Coolant belt filter FS 100
    Filtermist FX aerosol exhauster
    Manual working space rinsing
    Light signalization of machine status (beacon)
    Remote Diagnostic
    MAS Machine Monitor
    MAS GSM Monitor
    HEIDENHAIN control system options
    Electric equipment 3×400V/50Hz
    Control system HEIDENHAIN / SIEMENS
    Digital AC control drives for the spindle and axes X,Y,Z
    Direct measurement of the position of axes X, Y, Z by linear scales
    Cooling aggregate for external cooling
    Centric tool clamping
    Automatic lubrication of movable parts
    Hand wheel
    ETHERNET
    Thermal compensation
    Operator tool kit
    Operating manual
    Spindel circulation cooling
    Rake chip conveyor
    ATC with mechanical arm
    Working space lighting
    Switchboard air condition
    TECHNICAL DATAMMC 1500 POWER PLUSMMC 1500 POWERMMC 1500 SPEEDMMC 1500 SPRINT
    Joint working space – joint movement of the table + without the curtain
    Maximum dimension of the workpiecemm1500 x 1000 x 6001500 x 1000 x 6001500 x 1000 x 6001500 x 1000 x 600
    Table clamping surfacemm1500 x 13001500 x 13001500 x 13001500 x 1300
    Travel of the slide in X axismm1500150015001500
    Travel of the table in Y axismm1300130013001300
    Travel of the ram in axis Zmm600600600600
    Distance of the spindle nose from the table clamping surfacemm110 – 750110 – 750110 – 750110 – 750
    Maximum weight on the tablekg2500250025002500
    T-slots (number × width × pitch)5 × 18 × 1255 × 18 × 1255 × 18 × 1255 × 18 × 125
    FEED RATES
    Working feed rates in axes X,Y,Zmm/min1 – 45 0001 – 45 0001 – 45 0001 – 45 000
    Rapid traverse in axes X,Y,Zmm/min45 00045 00045 00045 000
    SPINDLE
    Speedmin-18 00010 00012 00018 000
    Output of spindle S1/S6 40%kW39 / 5020 / 2632 / 4825 / 35
    Max. torque S1 / S6Nm451 / 579260 / 340130 / 20086 / 120
    Spindle taperHSK-A100ISO 50ISO 40HSK-A63
