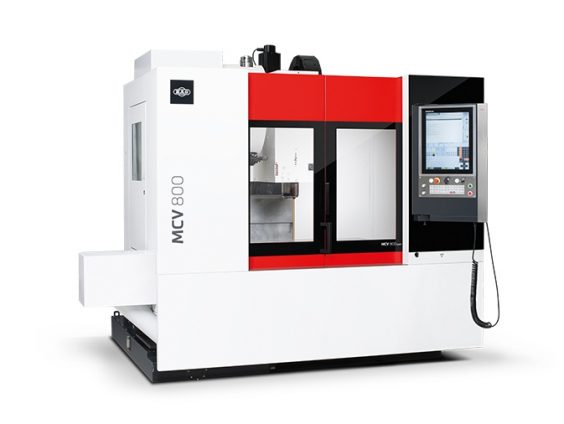

KOVOSVIT MCV 800 CLEVER CNC Vertical machining center
X / Y / Z – 800/ 500 / 550 mm

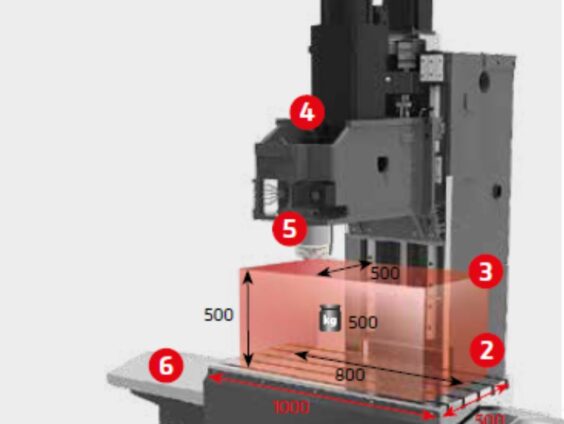

Table clamping surface: 1 000 x 500 mm
Max. weight on table: 500 Kg
Max. speed: 9 000 rpm
Linear rolling guides with indirect measuring of all axes.
Increased starting of X axis = 800 mm.
Small built-up machine area, improved ergonomics ⇒ lower spatial requirements.
Innovation of kinematic configuration of cross-table ⇒ Increased static rigidity of load-bearing structure.
New developed machine variant with worm chip conveyor ⇒ compactness (machine length decreased by 1200 mmas compared to link conveyor).
Increased number of clamping grooves on the table.
Heidenhain TNC620, Siemens 828D control system.
Innovated spindle ⇒ Decreased noise level, maximum revolutions incerased to 9 000 min-1
Standard accessories include manual airblast and rinsing, headstocklight, air blast for tools.
| TECHNICAL DATA | MCV 800 CLEVER | |
| Table | ||
| Table clamping surface | mm | 1000 × 500 |
| T-slots (number×width×spacing) | ks | 5 |
| Max. weight on table | kg | 600 |
| Working range | ||
| X-axis | mm | 800 |
| Y-axis | mm | 500 |
| Z-axis | mm | 550 |
| Distance from spindle nose to table clamping surface | mm | 100 – 650 |
| Spindle | ||
| Spindle taper | – | ISO 40 (7:24) |
| Max. speed | min-1 | 9 000 |
| Speed change | – | Continuously |
| Feed rate | ||
| Working feed rate X, Y, Z | m.min-1 | 15 000 |
| Rapid traverse X, Y, Z | m.min-1 | 30 000 |
| Tool magazine | ||
| Magazine capacity | – | 24 |
| Max. tool length | mm | 250 |
| Max. tool dia. | mm | 80 |
| Max. tool dia. – adjacent stations empty | mm | 120 |
| Change time of adjacent tool | s | 3 |
| Max. tool weight | kg | 6,5 |
| Motor | ||
| Spindle motor output – SIEMENS (S1/S6 – 40%) | kW | |
| Spindle motor output HEIDENHAIN (S1/S6 – 40%) | kW | 7,5 / 10,5 |
| Nominal torque SIEMENS (S1/S6 – 40%) | Nm | 48 / 74 |
| Max. total machine input | kVA | 15 |
| Accuracy ČSN ISO 230 – 2 | ||
| Measuring system X, Y, Z | – | indirect (from motor) |
| Positioning accuracy of coordinates | mm | |
| Accuracy of repeatability | mm | |
| Air operating pressure | Mpa | 0,6 |
| Machine dimensions | ||
| Machine dimensions (l x w x h) | mm | 2086 × 2749 × 2470 * |
| Machine weight | kg | 4 000 |
