PBH 45

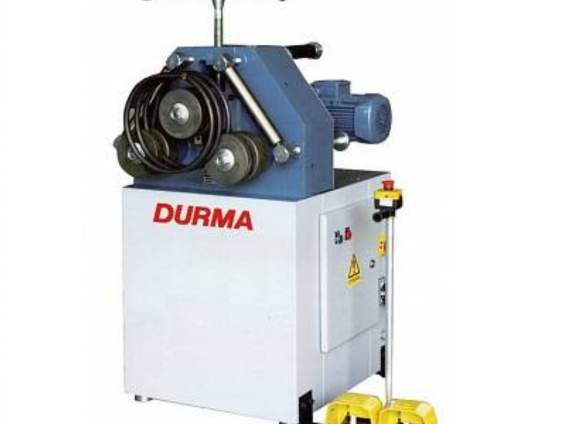

Durma PBH 45 SERIES PROFİLE BENDING MACHINE

Robust machine frame is rugged steel construction, machined after the welding for rigidity.
Precise bending by large shaft diameters and bearings also minimizes deflection.
Longlife of machine by strong frame and world class components. Short cycle times by high
drive torque and speed. Minimised straight edge by hydraulic adjustments
Low energy and maintainence costs by friction free planetary swing guides.
Powerful guide rolls.





    3 mech. driven rolls
    strong welded steel construction
    top roll hydr. adjustable
    digital read-out for upper roll position on seperate control panel
    brake motor
    plane and hardened universal rolls
    lateral rolls adjustable in 1 axis
    horizontal and vertical operation
    double foot pedal for- and backward drive
    machine and equipment according to the CE regulations

    1 set standard hardened and ground rolls made by special steel
    Mechanic side supports
    Horizontal & Vertical working feature
    Foot pedal with Emergency button
    Bottom rolls driven by motor & gearbox
    Cast iron body
    Movable command panel seperate from the machine (PBH 45)
    All rolls driven by motor & gearbox (PBH 45)
    Top roll hydraulic movement up and down (PBH 45)
    Top roll with digital readout (PBH 45)
    Brake motor (PBH 45)

    Bar twist device
    Digital readout
    Mono phase motor
    Special support for angle irons
    Special rolls ( Pipe,profile, angle iron )
