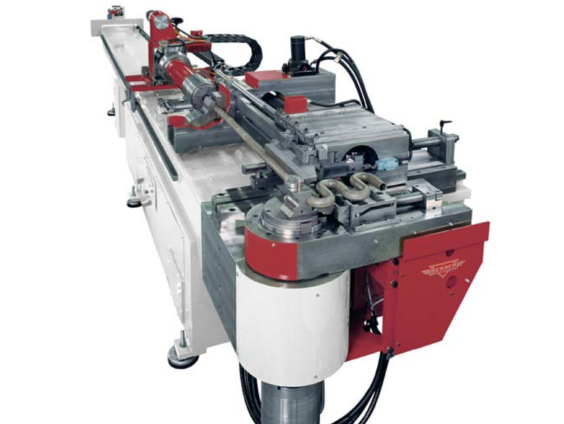

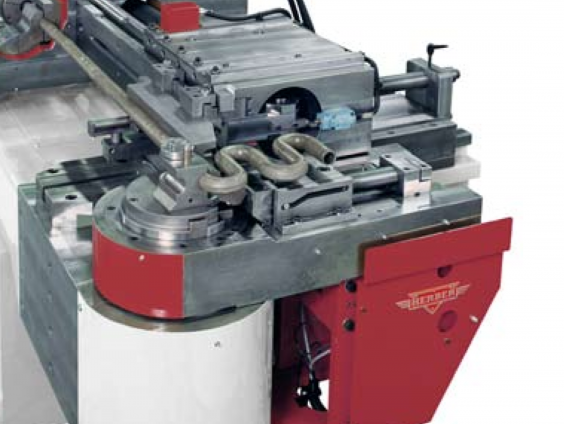

Herber 127 CNCTB four axis booster bending machine
The Herber four axis booster bending machine models 76– 90 and 127 CNC TB with capacity OD 63 x 5 mm, 90 x 5 and 127 x 5 mm. Complete equipped for coil bending with radie down to 1 x D.
Programmable speed- and pressure setting of the booster unit.
Individually programmable speed and acceleration/retardation
of each axis.
Laser scanner for clamp jaw and pressure die.
Programmable tolerance range of each separate axis.
Standard components from well-known european manufacturers.
Online connection with CAD system or measuring machine.
Automatic tube magazine with automatic tube loading.
The control system works with 4 individually programmable axes.
The CNC-system is a close loop system which does not allow the machine to continue before previous movement has reached its programmed position. To optimise the accuracy and speed of the machine the degree of tolerance is programmable. Normal programmed tolerance is ±0,05-0,1 mm/degree.
|Technical specifications/Herber 76/90/127 CNC TB|
|76 CNC TB||90 CNC TB||127 CNC TB|
|Capacity, Ø mm||63 x 5||90 x 5||127 x 5|
|Bending speed/repeatability||40º/s. ±0,1°||60º/s. ±0,1°||24º/s. ±0,1°|
|Length of mandrel||3000||4000||4000|
|Machine dimensions||6,7 x 1,7 x 1,8||7,0 x 2,2 x 1,4||7,0 x 2,2 x 1,8|
|Length feeding||900 mm/sec||900 mm/sec||900 mm/sec|
|Standard components conform to VDMA, ISO and DIN standards.|
