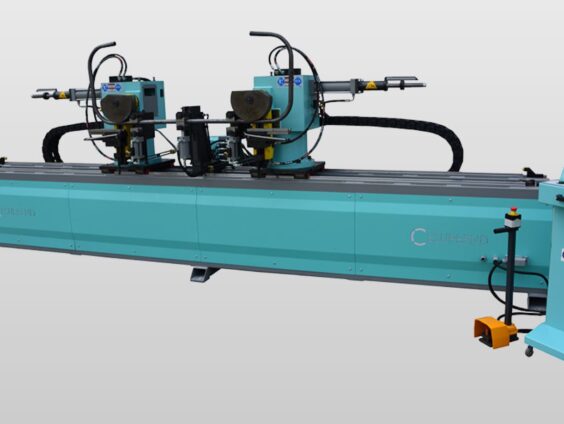

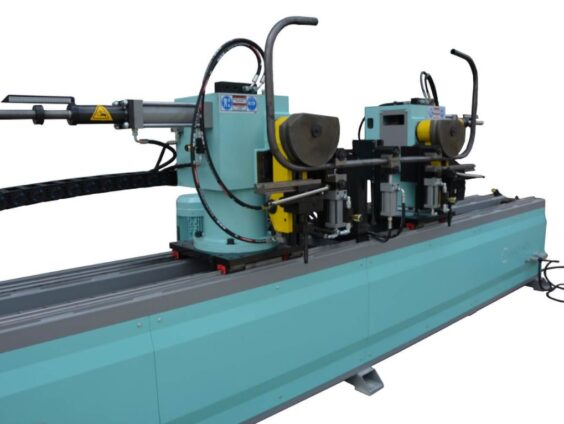

PB-38 DHNC Double Head Pipe and Tube Bending Machine

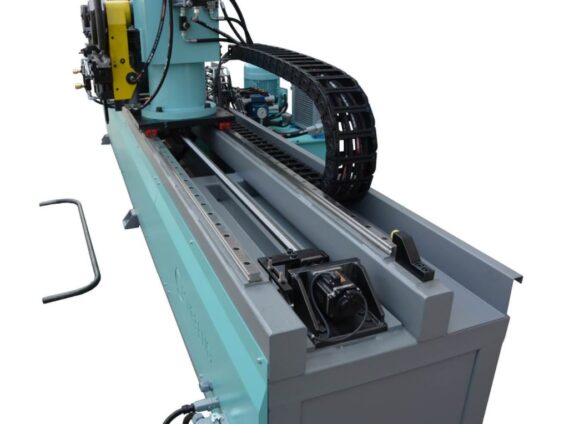

X axis control with servo motor
Ability to make more than one bend
CNC Control
7″ touch PC Panel.Turkish and English language option
| Technical specification | |
| Model | PB-38 DHNC |
| Max. Bending Capacity (Ø) | 38 x 3 |
| Max. Bending Radius (mm) | 220 |
| Bending Degree (°) | 0 – 90 |
| Shaft Diameter (mm) | 40 |
| Tightening Opening Distance (mm) | 50 |
| Pressure On Distance (mm) | 50 |
| Min.-Max. Bending Distance (mm) | 250 – 5500 |
| Working Height (mm) | 1220 |
| Hydraulic Tank Capacity (lt) | 160 |
| Engine Power (kW) | 7.5 |
| Machine Weight (kg) | 2000 |
| Machine Width (mm) | 1700 |
| Machine Length (mm) | 5200 |
| Machine Height (mm) | 1700 |
