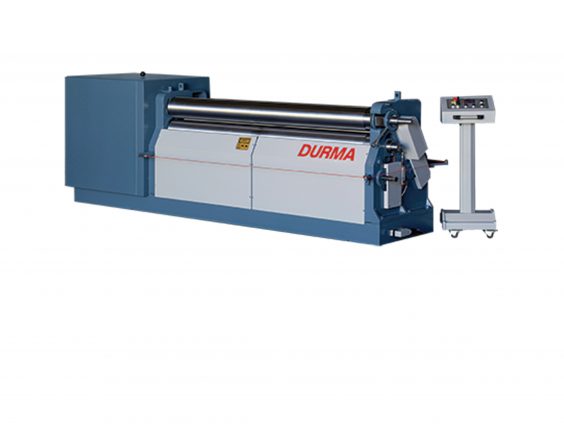

DURMA MRB-S / MRB Series Plate Rolls
Motorised Assymetrical 3 Roll Machine
Especially for thinner sheets with small lot sizes
Easy prebending thanks to top & bottom rolls tighten the workplace
Cost-oriented solutions for small and medium enterprises
Wide range of industrial usage
HRB-3 Profil Bending today, tomorrow and forever with you.
- Conical bending
- Motorised back roll
- Top & Bottom rolls grear drriven
- Pendant command panel
- SAE 1050 steel rools
- Induction hardened rolls
- Stress relieved steel construction
- Support on 2,5 and 3 m machines
- Brake system for precise bendings
- Digital readout
- Motorised bottom roll tightening
- Ground rolls
- Roll extention for profile bending
- Special rolls for profile bending
- Special packing for overseas shipments
| MRB-S Technical data | Unit | 1506 | 2005 | 2006 | 2504 | 2506 | 2508 | 3004 | 3006 |
| Bending Length | mm | 1530 | 2030 | 2030 | 2530 | 2530 | 2530 | 3030 | 3030 |
| Bending Capacity | mm | 6 | 5 | 6 | 4 | 6 | 8 | 4 | 6 |
| Pre Bending | mm | 4 | 4 | 5 | 3 | 4 | 6 | 2 | 4 |
| Tolp roll Ø | mm | 150 | 160 | 170 | 170 | 190 | 220 | 180 | 220 |
| Motor Pover | kW | 4 | 4 | 4 | 4 | 5,5 | 5,5 | 4 | 5,5 |
| Length | mm | 3100 | 3600 | 3600 | 4100 | 4250 | 4250 | 4600 | 4750 |
| Height | mm | 1120 | 1120 | 1120 | 1120 | 1200 | 1200 | 1120 | 1200 |
| Width | mm | 1020 | 1020 | 1020 | 1020 | 1150 | 1150 | 1020 | 1150 |
| Weight | kg | 2100 | 2300 | 2300 | 2700 | 3750 | 4430 | 4250 | 4920 |
- Conical bending
- Motorised back roll
- Top & Bottom rolls grear drriven
- Pendant command panel
- SAE 1050 steel rools
- Induction hardened rolls
- Stress relieved steel construction
- Support on 2,5 and 3 m machines
- Brake system for precise bendings
- Digital readout
- Motorised bottom roll tightening
- Ground rolls
- Roll extention for profile bending
- Special rolls for profile bending
- Special packing for overseas shipments
| MRB Technical data | Unit | 1004 | 1204 | 1503 | 1504 | 2004 |
| Bending Length | mm | 1030 | 1280 | 1530 | 1530 | 2030 |
| Bending Capacity | mm | 4 | 4 | 3 | 4 | 4 |
| Pre Bending | mm | 3 | 3 | 2 | 3 | 2,5 |
| Tolp roll Ø | mm | 110 | 120 | 110 | 130 | 140 |
| Motor Pover | kW | 2,2 | 2,2 | 2,2 | 2,2 | 2,2 |
| Length | mm | 1900 | 2150 | 2400 | 2400 | 2900 |
| Height | mm | 1120 | 1120 | 1120 | 1120 | 1120 |
| Width | mm | 940 | 940 | 940 | 940 | 940 |
| Weight | kg | 1195 | 1345 | 1388 | 1425 | 1565 |
