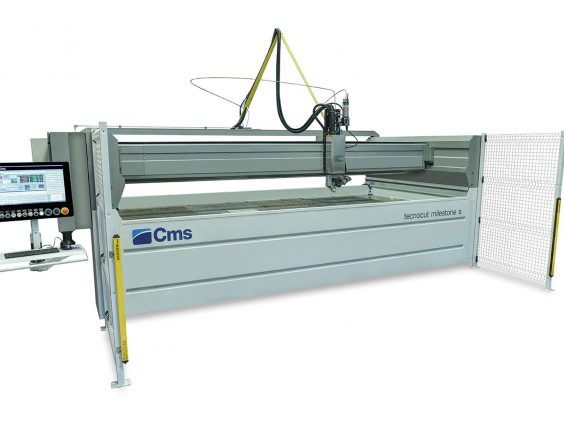

CMS tecnocut milestone s Waterjet Cutting Systems
The tecnocut milestone s waterjet cutting system is the answer to the requirements of CMS Tecnocut’s customers. Simple to use and powerful, it has been specifically designed to provide high levels of productivity and the maximum safety of operation. tecnocut milestone s is particularly suited to the stoneworking industry.
Max capacity of support surface: 1000 kg/m2 – Speed: 0->40000 mm/min – 15” TFT colour screen, membrane keyboard with built-in mouse.
External port for USB key interface – Connection to the computer network: RJ45 10/100 Mb connector.

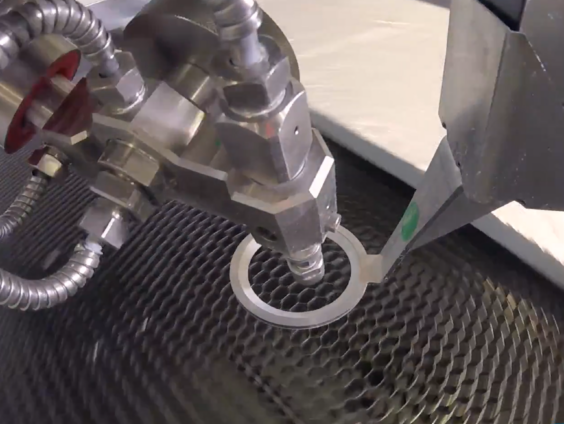

Tecnocut Milestone S is an advanced, versatile, high-performance
waterjet cutting system – either pure water or hydro-abrasive – able
to accomodate the most diverse production demands in different
application fields, delivering highly accurate cuts even in 3D.
- The bridge structure with fixed table, mobile crossbeam and high
guides make it compact and able to move quickly.
- All motions are carried out by tempered ground rack, driven by
- The axes’ guideways are housed within the structure and protected
by an innovative system called “Powder-Free”, which provides full
protection against water and powders.
|TECNOCUT MILESTONE: TECHNICAL DATA|

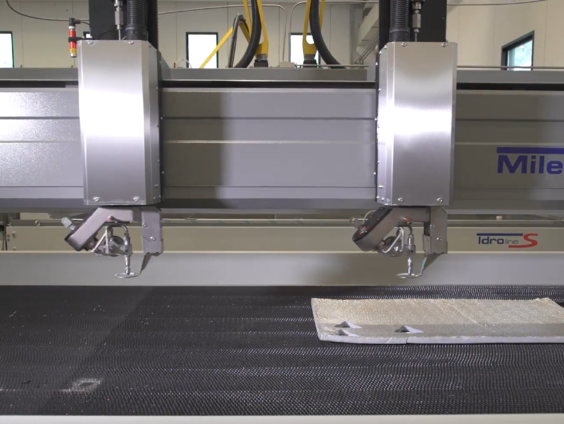

|X AXIS||3000 mm (2heads) 3300 mm (1head)||4000 mm (2heads) 4250 mm (1head)|
|Y AXIS||1700 mm||2000 mm|
|Z AXIS||350 mm (200 mm with 5-axis head)||350 mm (200 mm with 5-axis head)|
|B AXIS||+/- 60°||+/- 60°|
|SUPPORT PLANE||3700×2050 mm||4650×2050 mm|
|OVERALL DIMENSIONS WITH LIGHT BARRIERS||5010 x 3600 mm||5960 x 3900 mm|
|WEIGHT (EMPTY)||3600 Kg||4000 Kg|
|Max capacity of support surface: 1000 kg/m2 – Speed: 0->40000 mm/min – 15” TFT colour screen, membrane keyboard with built-in mouse. External port for USB key interface – Connection to the computer network: RJ45 10/100 Mb connector.|
