CMS tecnocut easyline, Waterjet Cutting Robot
Three-axis hydroabrasive waterjet cutting robot with up to 2 x 4 m work range.
With tecnocut easyline, Tecnocut CMS gives each customer the possibility to have an advanced system at a very reasonable investment. Twenty years of experience and technological advances allowed us to manufacture high performance equipment that can reduce your production costs. All strictly made in Italy.

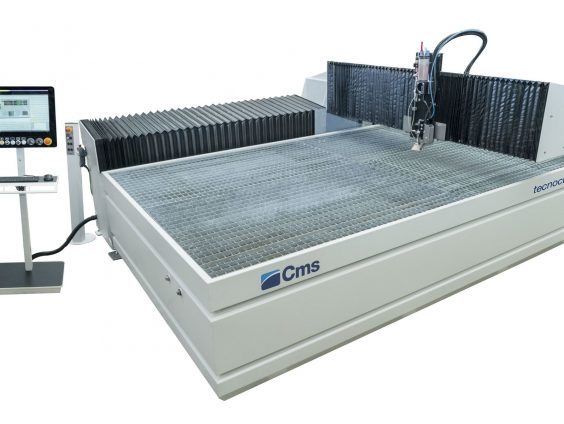

- The cantilever structure, with a separate tank, allows an easy access to the worktable. Loading and removing material is quick and easy.
- All axes’ motions are carried out through hardened and ground rack and pinion.

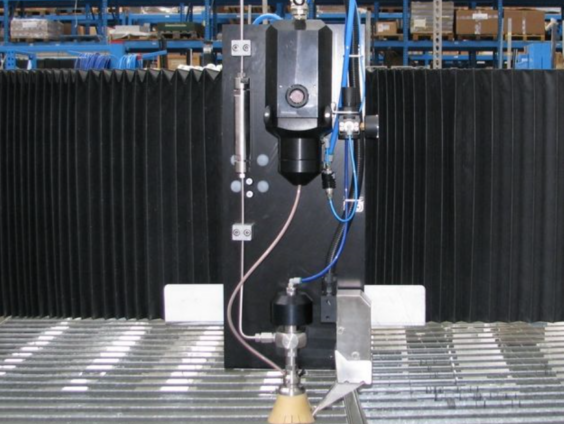

- The thermowelded bellows provide complete protection of the guides and the rack from water and dust.
- The steel structure undergoes an anti-rust treatment through sandblasting and ceramic painting, which results in a higher resistance against corrosion.
The tank is set up for the installation of a dredge system for the abrasive removal
- Highly constant pressure and no accumulator
- Higher stability of the dynamic pressure signal as a guarantee to achieve a superior quality cut. Lower wear of all machining centre high-pressure circuit components, longer life of materials and reduced maintenance.
- The technology of independent cylinders allows shutdown of any cylinder that needs servicing. This means the operator can choose the maintenance schedule, without stop the machine.

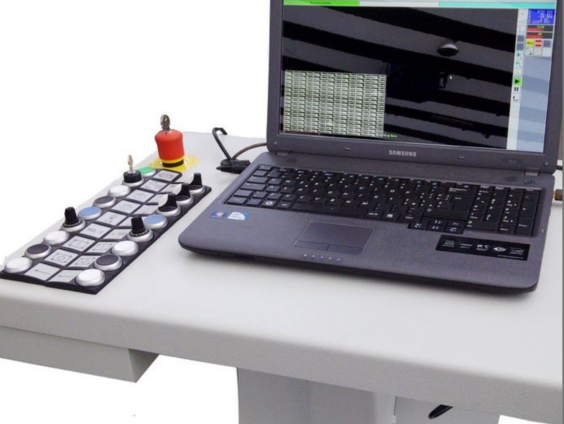

- Software-based electronic control of cutting pressure.
- Electronic monitoring of temperature, pressure and filter clogging.
- Hydraulic pump with variable flow rates.
- Hydraulic cylinders return circuit with independent pump.
- Air/Oil exchanger for hydraulic circuit cooling (water/oil option).
- It can be connected to any Stand Alone cutting system.
| TECNOCUT EASYLINE: TECHNICAL DATA | ||||
| MODEL | 1010 | 2020 | 2040 | 2060 |
| X AXIS | 1000 mm | 2000 mm | 4000 mm | 6000 mm |
| Y AXIS | 1000 mm | 2000 mm | 2000 mm | 2000 mm |

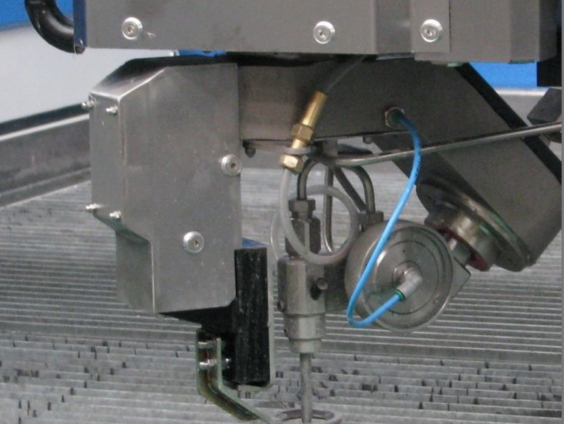

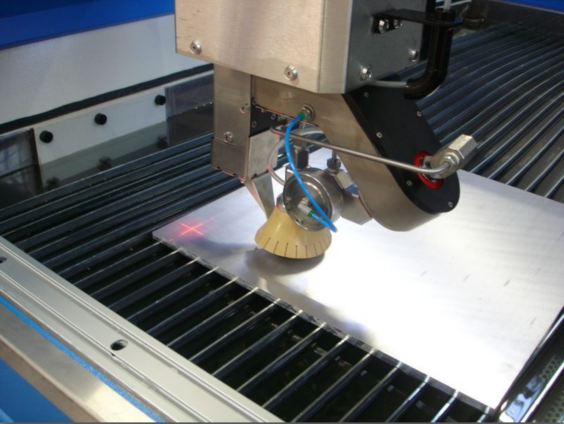

| Z AXIS | 220 mm (150 mm/with 5-axis head) | 220 mm (150 mm/with 5-axis head) | 220 mm (150 mm/with 5-axis head) | 220 mm (150 mm/with 5-axis head) |
| B AXIS | +/- 60° | +/- 60° | +/- 60° | +/- 60° |
| BED SIZE | 1210 x 1225 mm | 2210 x 2225 mm | 4210 x 2225 mm | 6210 x 2225 mm |
| OVERALL DIMENSIONS WITH LIGHT BARRIERS | 4680 x 4174 mm | 5680 x 5174 mm | 5680 x 7208 mm | 5680 x 9242 mm |
