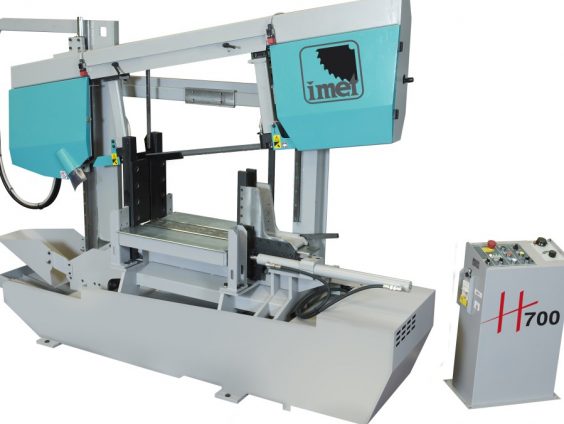

IMET H 700 Semiautomatic twin column bandsaw
Semiautomatic twin column bandsaw for straight cut only, hydraulically driven. Conceived and projected especially for cutting profiles, pipes, beams and also solids.
The steel welded arch with new design and big thickness section guarantees the absolute lack of vibration and noise.
Saw frame movement on linear guide with recirculating balls.
Against the common use the sawframe canted allows saw blade to freely and easily cut through the bottom of structural section without vibration, binding, or slowdown of sawing rates.
Registrable band guides with hard metal pads and guided bearings. The mobile band guide is automatically kept nearest the cutting area. Electronic Inverter for variable blade speed. Driving console movable for a useful and secure positioning, equipped with power and speed regulation.
“Clean cut” due to the standard cooling system with minimal lubrication to cut long pipe and profile without any leakage of coolant.
Cutting capacity at 90 °: Round 520 mm., square 450 mm. Rectangular 680 x 400.

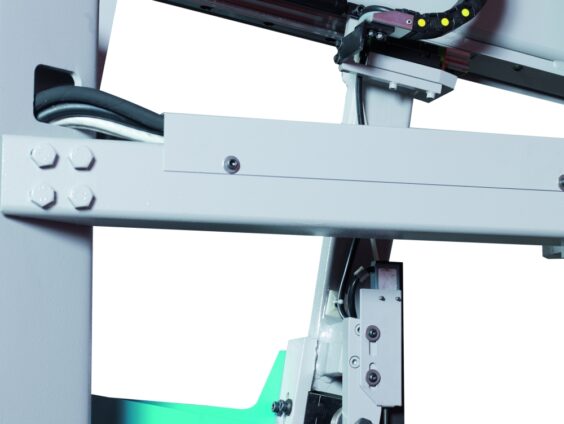

| Mobile Blade Guide
On our sawing machines the mobile blade guide is automatically kept in contact with the cutting point. |
 |
| Mobile Console
Imet saws have as standard a mobile console for easy positioning of in accordance with the work to be performed. |
 |
| Roller tables KS
Roller tables with free rolls to be used both on loading side and unloading side , with electrowelded steel structure, element of 1,5 meters, support pads and a pedestal. Fitted for the ground fixing and with possibility of regulation of the height |
 |
| Roller tables RTL
Roller tables with free rolls to be used on the unloading side, with manual movement, length stop and reading of the measure through LCD display, the length stop slides on balls recirculation guide, available in forms from 3 meters. |
 |
| Roller tables RTP
Loading-unloading tables with motorized movement of the length stop with the possibility to plan 10 different lengths through PLC . Movement through toothed strap and geared motor on ball recirculation guides . Length stop through pneumatic cylinder. Reading of the position through encoder and rack. Available in forms of 3 meters. Automatic withdrawal of 50 mm to facilitate the unload of the cut piece, return in position through a button on the control. |
 |
| Roller tables with motorized rolls RTR
Roller tables with motorized rolls, to be used for both loading– unloading side, driven by pinions, chain and electric motor controlled by an inverter; the management of the roller tables is performed trough a mobile push-button panel provided of: speed regulation movement, direction movement, emergency button,simultaneous or single functioning of the tables. Completable with metric rod, manual positioning with digital reading or motorized version. In the motorized version possibility to memorize up to 10 different lengths through PLC. Position sensor to slow down the run of the material and to guarantee the precision of the lengths of cut. Operation: once selected the sense of advancement of the loading-unloading tables, the operator through buttons moves the material that in proximity of the length stop will slow down automatically till the established measure.
|
 |
| Vertical Rollers RTSKS
In case that your sawing machine mounts the bundle cutting device, it is advisable to request some vertical containment rollers for the material to be cut. |
 |
| H 700 | ||
| Area angular cut | ° | 90 |
| Cutting capacity at 90°: round / square / rectangular | mm. | 520 / 450 / 680 x 400 |
| Cutting capacity at 90°: rectangular with cutting bundle | mm. | 500 x 400 |
| Blade dimensions | mm. | 5870 x 34 x 1.1 |
| Inclination of the blade | ° | 10 |
| Blade Motor Power | KW | 3 |
| Blade speed | mt/min. | 15÷100 |
| Motor hydraulic unit | KW | 0.75 |
| Tank Capacity of the hydraulic unit | Lt | 20 |
| Capacity coolant tank | Lt | 3 |
| Dimensions ( B x L x H ) | mm. | 1100 x 3300 x 2500 |
| Height of the work-table | mm. | 900 |
| Weight | Kg | 1900 |
| Type of functioning | Semiautomatic hydraulic | |
| Suitable for cutting: | Steel / cast iron / high-strength steels / alloys | |
