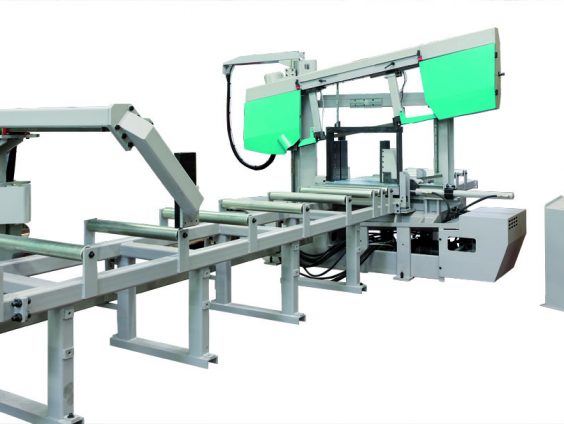

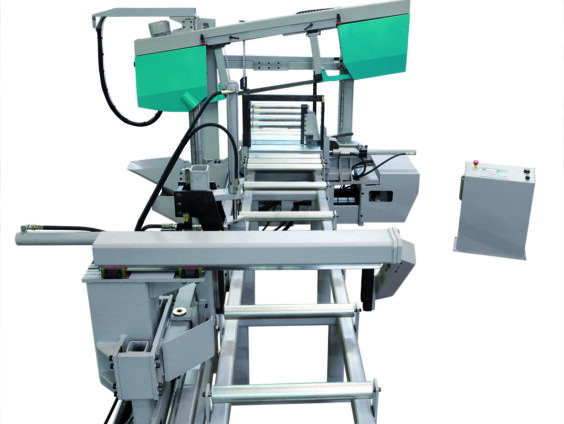

IMET H 700 F 1500-3000 INDUSTRY 4.0 READY Fully automatic CNC twin column bandsaws
Fully automatic CNC twin column bandsaws for straight cut only, with hydraulic lowering of the bow. Conceived and projected especially for cutting profiles structural steel work beams, tubes and also solids.
The CNC driver allows to set and memorize more than 90 cutting programs, with different cutting lengths and quantities.
Display LCD for visualization of: the cutting phases and working anomalies.
The speed of feeding and the force of cutting can be regulated by the console.
Registrable band guides with hard metal pads and guided bearings.
The mobile band guide is automatically kept as near as possible to the cutting area.
Electronic Inverter for variable blade speed.
“Clean cut” due to cooling system with minimal lubrication to cut long pipe and profile without any leakage of coolant.
Cutting capacity at 90 °: Round 520 mm., square 450 mm. Rectangular 680 x 400.
*The modem for Industry 4.0, teleservice and remote control is supplied as an optional.
| Mobile Blade Guide K
On the sawing machines the mobile blade guide is automatically kept in contact with the cutting point by means of a gas piston. The minimal lubrication is standard , it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected. |
 |
| Control panel H 601 NC
The numerical control of the sawing machine H 601 AF-NC is mounted on a mobile console for an easy positioning by the operator |
 |
| Roller tables KS
Roller tables with free rolls to be used both on loading side and unloading side , with electrowelded steel structure, element of 1,5 meters, support pads and a pedestal. Fitted for the ground fixing and with possibility of regulation of the height |
 |
| Vertical Rollers RTSKS
In case that your sawing machine mounts the bundle cutting device, it is advisable to request some vertical containment rollers for the material to be cut. |
 |
| H 700 F 1500-3000 INDUSTRY READY | ||
| Area angular cut | ° | 90 |
| Cutting capacity at 90°: round / square / rectangular | mm. | 520 / 450 / 680 x 400 |
| Cutting capacity at 90°: rectangular with cutting bundle | mm. | 500 x 400 |
| Blade dimensions | mm. | 5870 x 34 x 1.1 |
| Blade Motor Power | KW | 3 |
| Run of the feeder carriage (repeatable) | mm. | 1500 or 3000 |
| Power motor feeder | KW | 1.5 |
| Scrap end | mm. | 150 |
| Blade speed | mt/min. | 15 ÷ 100 |
| Motor hydraulic unit | KW | 1.5 |
| Tank Capacity of the hydraulic unit | Lt | 20 |
| Capacity coolant tank | Lt | 3 |
| Dimensions ( B x L x H ) | mm. | 5400 x 3300 x 2500 ( F3000 ) |
| Height of the work-table | mm. | 900 |
| Weight | Kg | 2900 ( F3000 ) |
| Minimum cuttable length | mm. | 30 |
| Type of functioning | semiautomatic/automatic CNC | |
| Suitable for cutting : | Steels / cast iron / high-strength steels / alloys | |
