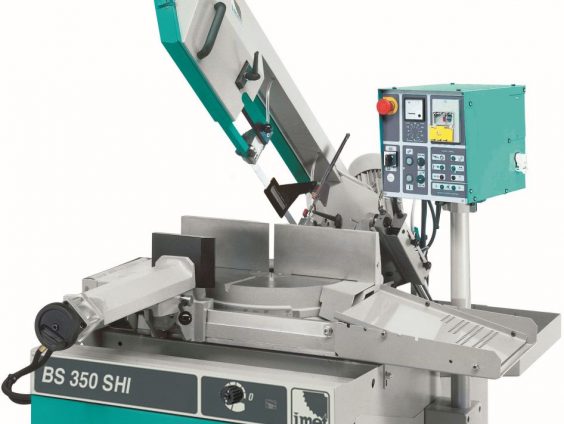

IMET BS 350 SHI Hydraulic semiautomatic bandsaw

Hydraulic semiautomatic bandsaw, mitre cutting from 0° to 60° left and from 0° to 45° right.

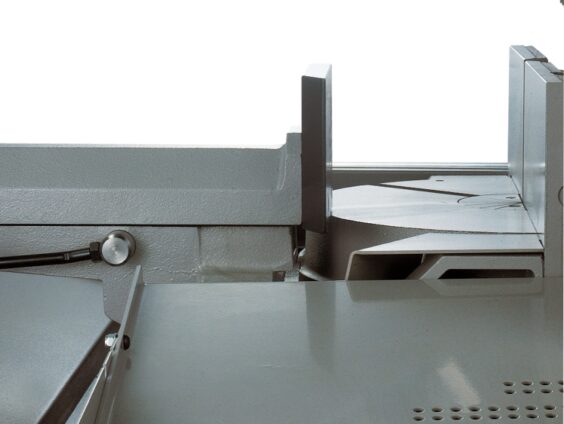

Hydraulic vice with adjustable guides, free to move alongside the worktable, with quick motion and clamping.
Easy stops at 0°, 45°, 60° left and 45° right. Adjustment of the blade tension from the front side of the sawframe, checked by an end-stroke. Blade guides with hard metal pads, additional bearing for blade alignment.
Steel sawframe with tubular section, pulleys 360 mm diameter.
Mechanical device (position sensor) that allows the sawframe to lower quickly toward the material and detect automatically the start-cut point.
Cutting Capacity: rounds till 255 mm., square till 240 mm. and rectangular till 300×180 mm.


    Minimal lubrication system OPTIONAL

    It is possible to require , for all Imet machines, the minimal lubrication system , it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected.

    Column SHI

    All Imet saws are designed to move the column by forklift.

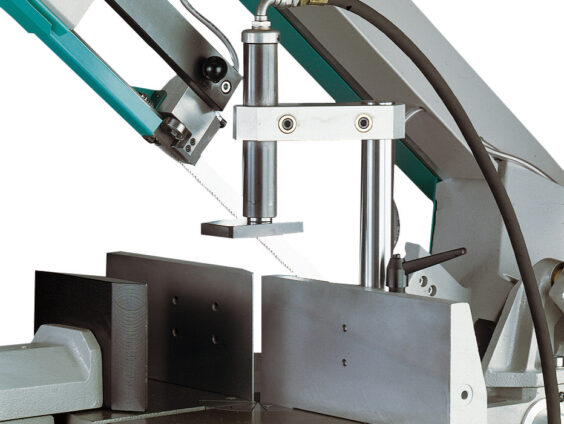

    Hydraulic vertical vice BS 350 SHI OPTIONAL

    For saws model BS 350 (only SHI) it is possible to request a vertical hydraulic piston controlled by the vertical movement of the main vice.

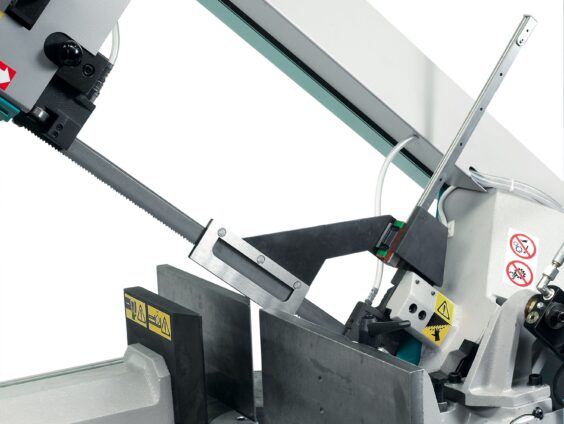

    Position Sensor BS 350

    In all semiautomatic and automatic saws the detection of the start point of cutting occurs automatically through the position sensor.

    Foot Pedal Control OPTIONAL

    Upon request for semi-automatic sawing machines a foot pedal control is available.



    Roller tables RTS

    Roller tables with free rolls, to use for loading side and unloading side, made of an electrowelded steel structure in forms of 2 meters each, with 7 galvanized steel rolls (of PVC for Velox models), the first element is with two adjustable height pedestals , the following ones with single pedestal. They include plates of protection among the rolls to avoid crushing. The structure is completely closed to avoid dispersions of coolant.

    Roller Tables RTM

    Same structures of the RTS roller tables, to be used on the unloading side with length stop and metric rod for the reading of the length, mechanical block in position by handle.

    Roller Tables RTD

    Roller tables with free rolls and length stop through a hand-wheel with chain transmission and reading of the measure through LCD display. Automatic and pneumatic withdrawal of 50 mm to facilitate the unload of the cut piece, return in position through a button on the control. Turnover of the length stop with a button on the control, through pneumatic piston. Block in position is also pneumatic through a button.

    Roller tables RTP BS.

    Roller tables with free rolls, length stop and motorized movement with possibility to plan 10 different lengths through PLC. Movement through toothed belt and geared motor on balls recirculation guides . Length stop through pneumatic cylinder. Reading of the position through encoder and rack. Available in forms from 3 meters. Automatic withdrawal of 50 mm to facilitate unloading of the cut piece, return in position through a button on the control.

    IMET BS 350 SHI
    Area angular cut ° -45 / 90 / +30
    Cutting capacity at 90°: round / square / rectangular mm. 305 / 260 / 350 x 200
    Blade dimensions mm. 3370 x 27 x 0.9
    Blade Motor Power KW 1.5/2.2 or 2.2 ESC
    Blade speed RPM 37/74
    Dimensions ( B x L x H ) mm. 1480 x 1700 x 1900
    Height of the work-table mm. 940
    Weight Kg 650
    Type of functioning Semiautomatic hydraulic
    Suitable for cutting: Steel / cast iron
