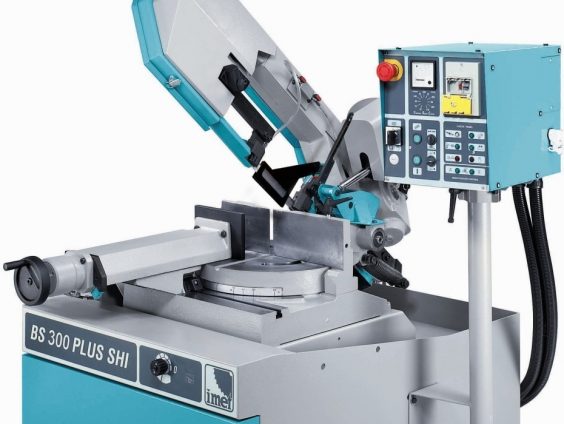

IMET BS 300 PLUS SHI Hydraulic semiautomatic bandsaw
Hydraulic semiautomatic bandsaw, mitre cutting from 0° to 60° left and from 0° to 45° right. Hydraulic vice with adjustable guides, free to move alongside the worktable, with quick motion and clamping.
Easy stops at 0°, 45°, 60° left and 45° right. Blade guides with hard metal pads, additional bearing for blade alignment.
Cast-iron sawframe with tubular section, pulleys 320 mm diameter.
Blade guard which allows an easy and quick replacement of the blade.
Mechanical device (position sensor) that allows the sawframe to lower quickly toward the material
and detect automatically the start-cut point.
Cutting Capacity: rounds till 255 mm., square till 240 mm. and rectangular till 300×180 mm.
| Minimal lubrication system OPTIONAL
It is possible to require , for all Imet machines, the minimal lubrication system , it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected. |
 |
| BS 300 inverter OPTIONAL
If required, the electronic inverter for variable blade speed allows the operator via keyboard to adjust the machine to be able to cut a wide range of materials and different sections. The change of speed is via inverter and it does not affect the power of the engine even at low speeds. |
 |

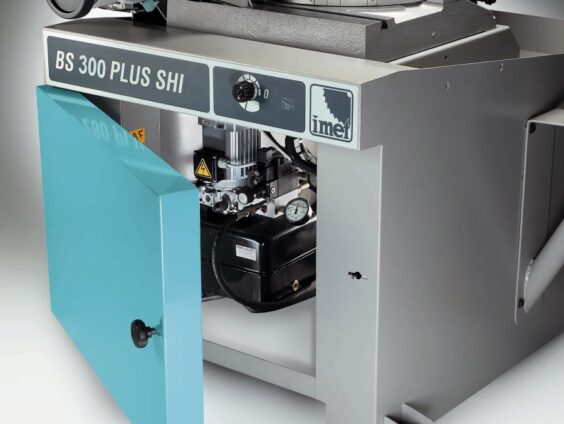

| Column SHI

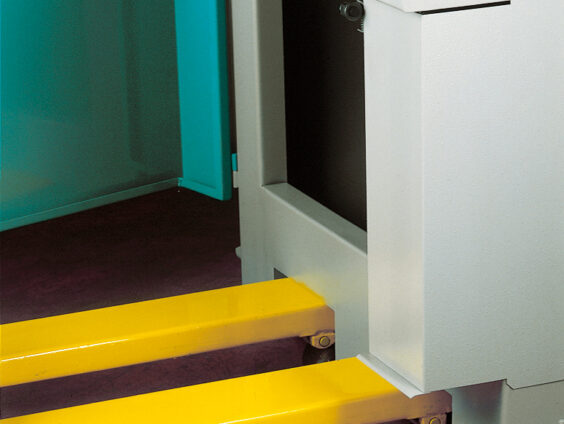

All Imet saws are designed to move the column by forklift. |
 |

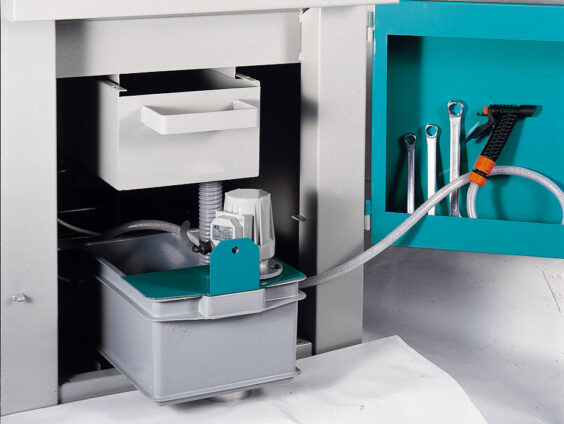

| Column Coolant-tank and washing gun SHI
All semiautomatic hydraulic bandsaws have within the column the coolant-tank for the refrigerant liquid and the washing gun for cleaning the machine surfaces. |
 |
| Position Sensor BS 300
In all our semiautomatic and automatic saws the detection of the start point of cutting occurs automatically through the position sensor.
|
 |

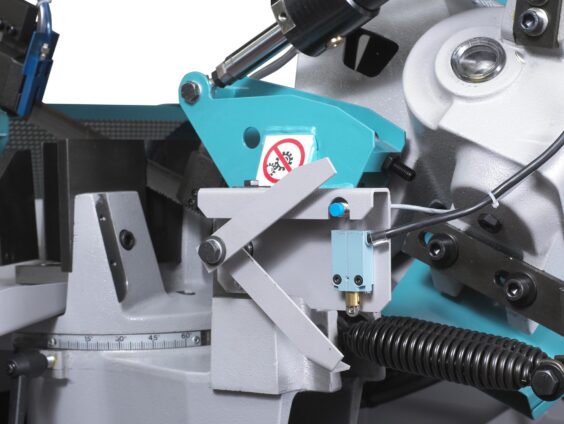

| Microswitch end cut point BS 300
In all semiautomatic and automatic saws the adjustment of the end cut point is via a lever that activates a microswitch of easy positioning |
 |
| Foot Pedal Control OPTIONAL
Upon request for semi-automatic sawing machines a foot pedal control is available. |
 |
| Roller tables RTS
Roller tables with free rolls, to use for loading side and unloading side, made of an electrowelded steel structure in forms of 2 meters each, with 7 galvanized steel rolls (of PVC for Velox models), the first element is with two adjustable height pedestals , the following ones with single pedestal. They include plates of protection among the rolls to avoid crushing. The structure is completely closed to avoid dispersions of coolant. |
 |
| Roller Tables RTM
Same structures of the RTS roller tables, to be used on the unloading side with length stop and metric rod for the reading of the length, mechanical block in position by handle. |
 |
| Roller Tables RTD
Roller tables with free rolls and length stop through a hand-wheel with chain transmission and reading of the measure through LCD display. Automatic and pneumatic withdrawal of 50 mm to facilitate the unload of the cut piece, return in position through a button on the control. Turnover of the length stop with a button on the control, through pneumatic piston. Block in position is also pneumatic through a button. |
 |
| Roller tables RTP BS.
Roller tables with free rolls, length stop and motorized movement with possibility to plan 10 different lengths through PLC. Movement through toothed belt and geared motor on balls recirculation guides . Length stop through pneumatic cylinder. Reading of the position through encoder and rack. Available in forms from 3 meters. Automatic withdrawal of 50 mm to facilitate unloading of the cut piece, return in position through a button on the control. |
 |
| IMET BS 300 plus SHI | ||
| Area angular cut | ° | -45 / 90 / +30 |
| Cutting capacity at 90°: round / square / rectangular | mm. | 255 / 240 / 300 x 180 |
| Blade dimensions | mm. | 2765 x 27 x 0.9 |
| Blade Motor Power | KW | 1.5 / 1.8 |
| Blade speed | RPM | 35/70 |
| Dimensions ( B x L x H ) | mm. | 1230 x 1700 x 1750 |
| Height of the work-table | mm. | 940 |
| Weight | Kg | 415 |
| Type of functioning | Semiautomatic hydraulic | |
| Suitable for cutting: | Steel / cast iron | |
