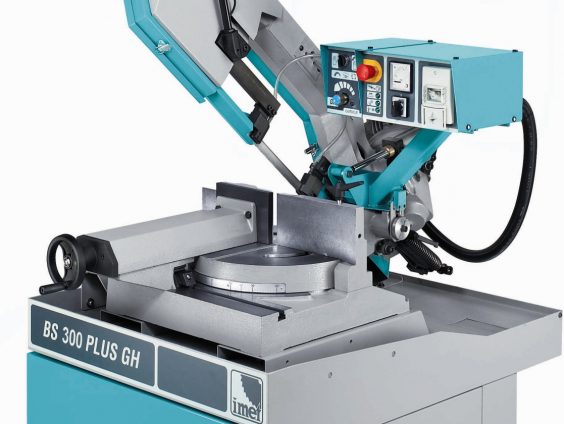

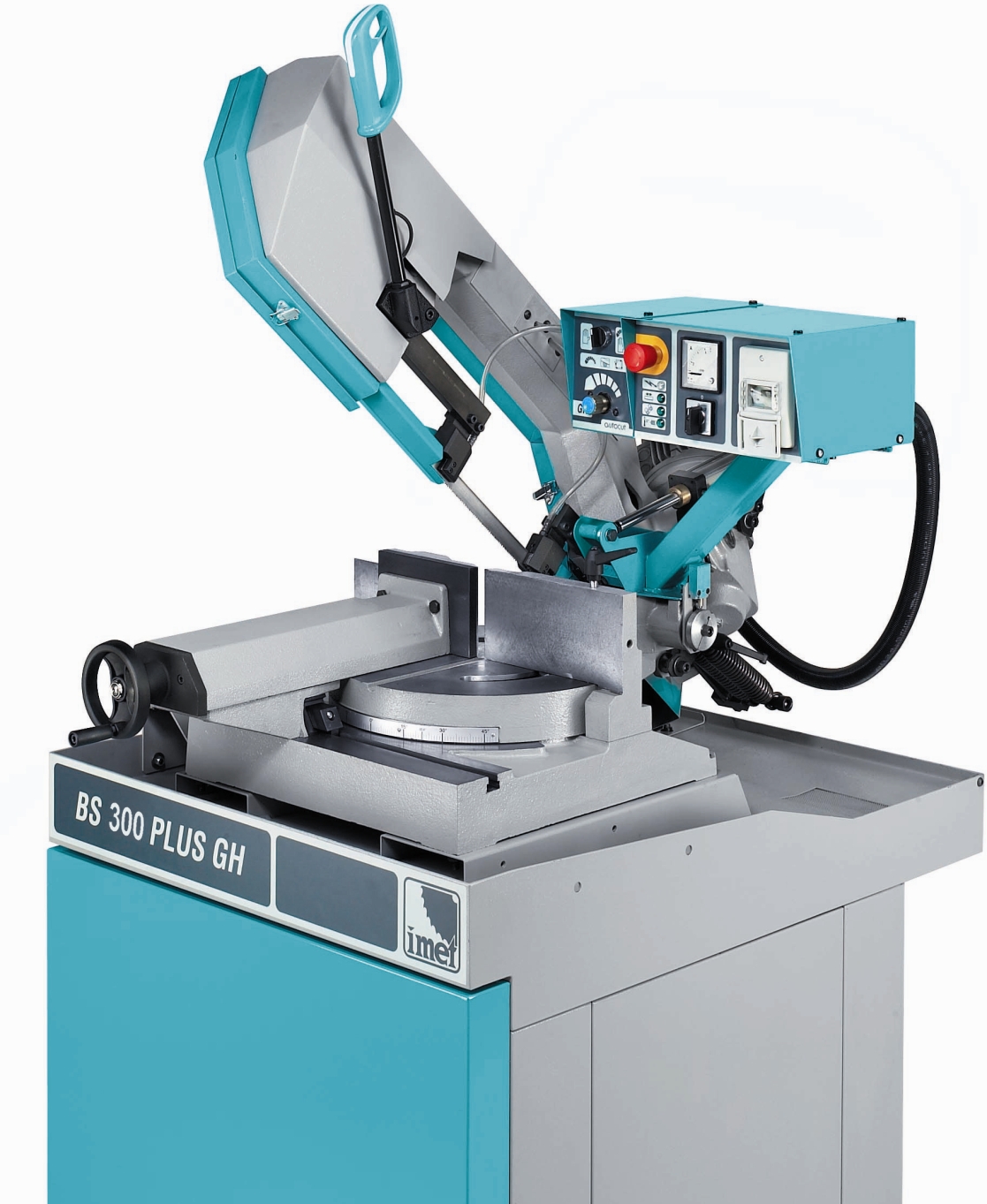

IMET BS 300 PLUS GH Autocut Versatile Bandsaw

Versatile Bandsaw for cuts of small and medium batch production either mechanics or light steelwork up to 45° right and 60° left.
Automatic easy stops at 0°, 45°, 60°left and 45° right , and graduated plate to identify different angles.
Vice with adjustable guides, free to move alongside the worktable, with rapid approaching and clamping.Blade guides with hard metal pads,additional bearing for blade alignment.
AUTOCUT GH Version with “3 Ways” selector:
– A Manual cut.
– B Self-brake manual cut.
– C Automatic cut with autonomous adjustable lowering and stopping microswitch at the end of the cut.
Rigid cast-iron sawframe with tubular section,pulleys 320 mm diameter and high blade tension 1700 kg/cm².
Wide working space 418 mm diameter with rotating table integral with the sawframe to avoid incisions of the table, rotation on thrust ring with pre-loaded thrust bearing.
Cutting Capacity: Rounds till 255 mm., square till 240 mm. and rectangular till 300×180 mm.


    Minimal lubrication system OPTIONAL

    It is possible to require , for all Imet machines, the minimal lubrication system , it avoids the dispersion of refrigerant liquid typical in the use of emulsifiable oil, the life of the blade is not in any way affected.

    BS 300 inverter OPTIONAL

    If required, the electronic inverter for variable blade speed allows the operator via keyboard to adjust the machine to be able to cut a wide range of materials and different sections. The change of speed is via inverter and it does not affect the power of the engine even at low speeds.

    Rapid vice

    All the vices for our semiautomatic models PLUS and BS 350 have the transverse displacement and the approach / quick retrieve made by a handy lever

    BS 300 GH Springs

    On all our bandsaws models BS 300,350,400 we mount a pair of springs for the perfect balance of the sawframe.

    BS 300 PLUS pneumatic vice OPTIONAL

    It is possible to request as optional the mounting of a vice with pneumatic opening / closing controlled by the movement of the sawframe.



    Roller tables RTS

    Roller tables with free rolls, to use for loading side and unloading side, made of an electrowelded steel structure in forms of 2 meters each, with 7 galvanized steel rolls (of PVC for Velox models), the first element is with two adjustable height pedestals , the following ones with single pedestal. They include plates of protection among the rolls to avoid crushing. The structure is completely closed to avoid dispersions of coolant.

    Roller Tables RTM

    Same structures of the RTS roller tables, to be used on the unloading side with length stop and metric rod for the reading of the length, mechanical block in position by handle.

    Roller Tables RTD

    Roller tables with free rolls and length stop through a hand-wheel with chain transmission and reading of the measure through LCD display. Automatic and pneumatic withdrawal of 50 mm to facilitate the unload of the cut piece, return in position through a button on the control. Turnover of the length stop with a button on the control, through pneumatic piston. Block in position is also pneumatic through a button.

    Roller tables RTP BS.

    Roller tables with free rolls, length stop and motorized movement with possibility to plan 10 different lengths through PLC. Movement through toothed belt and geared motor on balls recirculation guides . Length stop through pneumatic cylinder. Reading of the position through encoder and rack. Available in forms from 3 meters. Automatic withdrawal of 50 mm to facilitate unloading of the cut piece, return in position through a button on the control.

    IMET BS 300 plus GH Autocut
    Area angular cut ° -45 / 90 / +30
    Cutting capacity at 90°: round / square / rectangular mm. 255 / 240 / 300 x 180
    Blade dimensions mm. 2765 x 27 x 0.9
    Blade Motor Power KW 1.5 / 1.8
    Blade speed RPM 35/70
    Dimensions ( B x L x H ) mm. 900 x 1700 x 1860
    Height of the work-table mm. 950
    Weight Kg 330
    Type of functioning Manual/Gravity
    Suitable for cutting: Steel / cast iron
